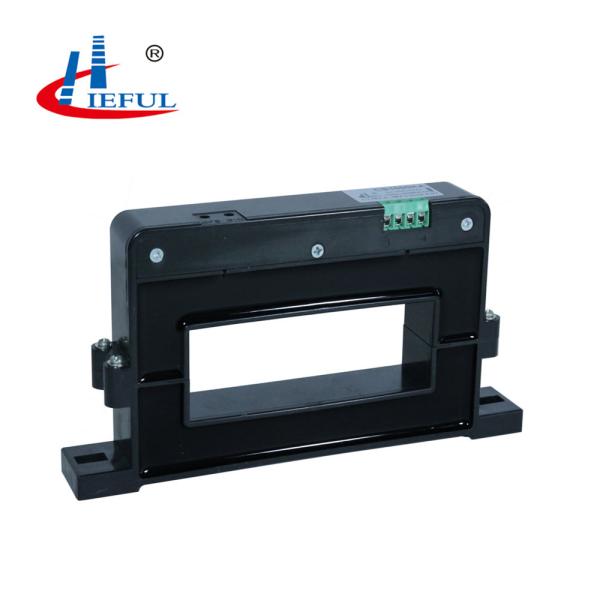

Open Loop Current Transducer Hall Effect Sensor For Electroplating / Welding System

Product Categories
Nanjing Chieful Science & Technology Co., Ltd.
Contact Now

Open Loop Current Transducer Hall Effect Sensor For Electroplating / Welding System

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CS5000KA

MOQ : 1-99 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 960 g

window size : 104*36 mm

Type : open loop

Product name : current transducer CS5000KA

Certificate : ROHS CE ISO9001

linearity : <1%FS

mass : 960g

Capacity : 10000pcs/month

Warranty : 5years

Selling Units : Single item

Single package size  : 26X19X17 cm

Single gross weight : 0.96 kg

Package Type : current sensor there is one pcs in a bubble.then the bubble packing in carton.

Contact Now

Open Loop Current Transducer Hall Effect Sensor For Electroplating / Welding System
Product Description

Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current monitoring,battery application,inverter,solar power management,direct current cabinet ,DC motor drive,electroplating,welding,frequency converter,UPS servo control systems.

They feature the quick response ,wide range of measurement,high precision ,strong overload capcity,good linearity and excellent and anti-interference performace.

current transducer CS5000KA

Electrical characteristics
Type CS600KA CS1000KA CS2000KA CS3000KA CS5000KA
IPN Primary nominal input current 600 1000 2000 3000 5000 A
IP Measuring range of primary current 0~±1200 0~±2000 0~±4000 0~±6000 0~±7500 A
VOUT Nominal output voltage 4±1% V
VC Supply voltage ±15(±5%) V
IC Current consumption VC=±15V <20 mA
VD Insulation voltage AC/50Hz/1min 2.5 kV
εL Linearity <1 %FS
VO Offset voltage TA=25℃ <±25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IP=0 TA=–25~+85℃ <±1 mV/℃
TR Response time ≤3 μs
f Frequency bandwidth(-3dB) DC~20 kHz
TA Ambient operating temperature –25~+85 ℃
TS Ambient storage temperature –40~+100 ℃
RL Load resistance ≥10 KΩ
Standard Q/3201CHGL02-2007

About us

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Exhibition

Logistics packaging

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
