Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

Product Categories
Nanjing Chieful Science & Technology Co., Ltd.
Contact Now

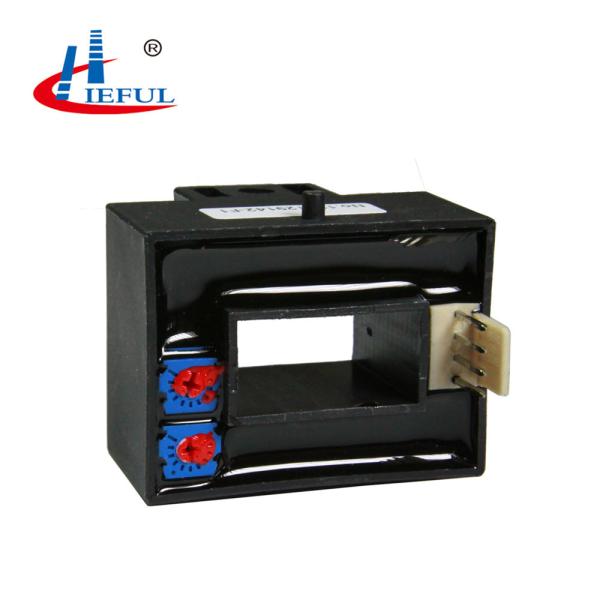

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CS400BT5

MOQ : 1-499 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 55 g

Selling Units : Single item

Single package size  : 23X18X7 cm

Single gross weight : 0.055 kg

Package Type : packing in bubble and carton

Contact Now

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5
Product Description

hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Application

Variable speed drives

Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical

Electrical characteristics
Type

CS030

BT5

CS050

BT5

CS100

BT5

CS200

BT5

CS300

BT5

CS400

BT5

CS500

BT5

CS600

BT5
IPN Primary nominal input current 30 50 100 200 300 400 500 600 A
IP Measuring range of primary current 60 100 200 400 600 800 900 900 A
VOUT Nominal output voltage 4±1% V
VC Supply voltage ±15(±5%) V
IC Current consumption VC=±15V <25 mA
VD Insulation voltage AC/50Hz/1min 2.5 kV
εL Linearity <1 %FS
VO Offset voltage TA=25℃ <±25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IP=0 TA=–25~+85℃ <±1 mV/℃
TR Response time ≤3 μs
f Frequency bandwidth(-3dB) DC~20 kHz
TA Ambient operating temperature –25~+85 ℃
TS Ambient storage temperature –40~+100 ℃
RL Load resistance ≥10 KΩ
Standard Q/3201CHGL02-2007

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

About us

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

Exhibition

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

Logistics packaging

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

Excellcet Accuracy Hall Effect Current Sensor Low Energy Consumption CS400BT5

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
