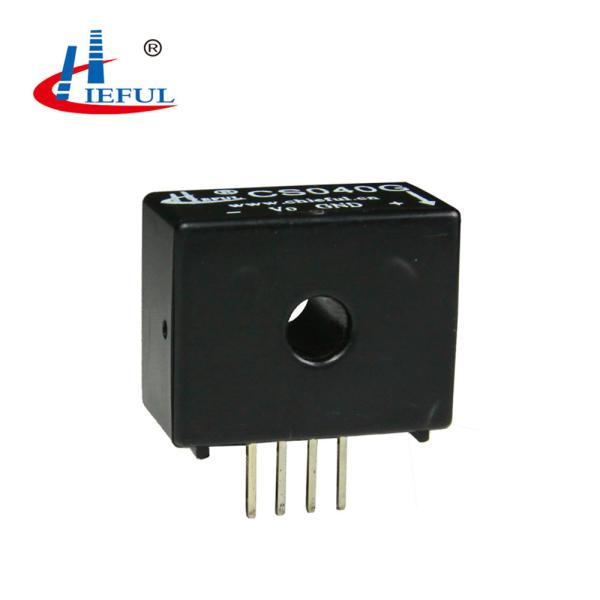

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

Place of Origin : China (Mainland)

Brand Name : chieful

Model Number : CS040G

MOQ : 500-999 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

Color : Black

Certificate : CE RoHS ISO9001

Capacity : 10000/month

Warranty : 5 years

diameter : 5mm

Selling Units : Single item

Single package size  : 5X2X1 cm

Single gross weight : 0.009 kg

Package Type : CARTON

Contact Now

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity
Product Description

This Hall effect current sensor can be used for measurement of DC and AC current, pulsed currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Hall effect sensor CS040G

Electrical characteristics
Type CS010G CS020G CS030G CS040G
IPN Primary nominal input current 10 20 30 40 A
IP Measuring range of primary current 0~±20 0~±40 0~±60 0~±80 A
VOUT Nominal output voltage 4±1% V
VC Supply voltage ±15(±5%) V
IC Current consumption VC=±15V <20 mA
VD Insulation voltage AC/50Hz/1min 2.5 kV
εL Linearity <1 %FS
VO Offset voltage TA=25℃ <±25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IP=0 TA=–25~+85℃ <±1 mV/℃
TR Response time ≤3 μs
f Frequency bandwidth(-3dB) DC~20 kHz
TA Ambient operating temperature –25~+85 ℃
TS Ambient storage temperature –40~+100 ℃
RL Load resistance ≥10 KΩ
Standard Q/3201CHGL02-2007

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

About us

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

Exhibition

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

Logistics packaging

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

40A Input Hall Effect Current Transducer CS040G Strong Overload Capacity

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
