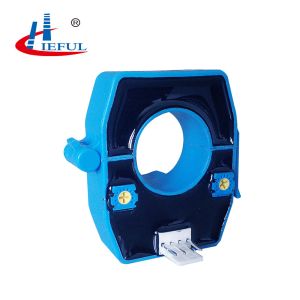

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

Product Categories
Nanjing Chieful Science & Technology Co., Ltd.
Contact Now

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CS400EKG

MOQ : 1-499 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

diameter : 20.5mm

weight : 50g

Application : Automation

Product name : current sensor CS400EKG

Certificate : CE, RoHS,ISO9001

Capacity : 100000pcs/month

Warranty : 5 years

Selling Units : Single item

Single package size  : 23X18X7 cm

Single gross weight : 0.05 kg

Package Type : packing in bubble and carton

Contact Now

High Accuracy Split Core Hall Effect Current Sensor For Switch Power Supply

Description

Working principle: open loop direct measurement.
Product uses: Used for measuring DC, AC, pulse current and other arbitrary waveform current.

Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
Electrical characteristics
Type CS100EKG CS200EKG CS300EKG CS400EKG CS500EKG
IPN Primary nominal input current 100 200 300 400 500 A
IP Measuring range of primary current 0～±200 0～±400 0～±600 0～±800 0～±1000 A
VOUT Nominal output voltage 4(±1%) V
VC Supply voltage ±12~±15(±5%) V
IC Current consumption 25 mA
Vd Insulation voltage AC/50Hz/1min 3.0 kV
εL Linearity ±1 %FS
V0 Offset voltage TA =25℃ 25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IPN=0 TA =-25～+85℃ <±1 mV/℃
Tr Response time ≤7 μs
f Frequency bandwidth(-3dB) DC～20 kHz
TA Ambient operating temperature -25～+85 ℃
TS Ambient storage temperature -40～+100 ℃
RL Load resistance ≥10K Ω
m Mass 50 g
Standard Q/320115QHKJ01-2010
Dimensions of drawing (mm)

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

About us

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

High Accuracy Hall Effect Split Core Current Sensor For Switch Power SupplyHigh Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

Exhibition

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

Logistics packaging

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

High Accuracy Hall Effect Split Core Current Sensor For Switch Power Supply

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
